Haven 236 façade concept · centred front elevation

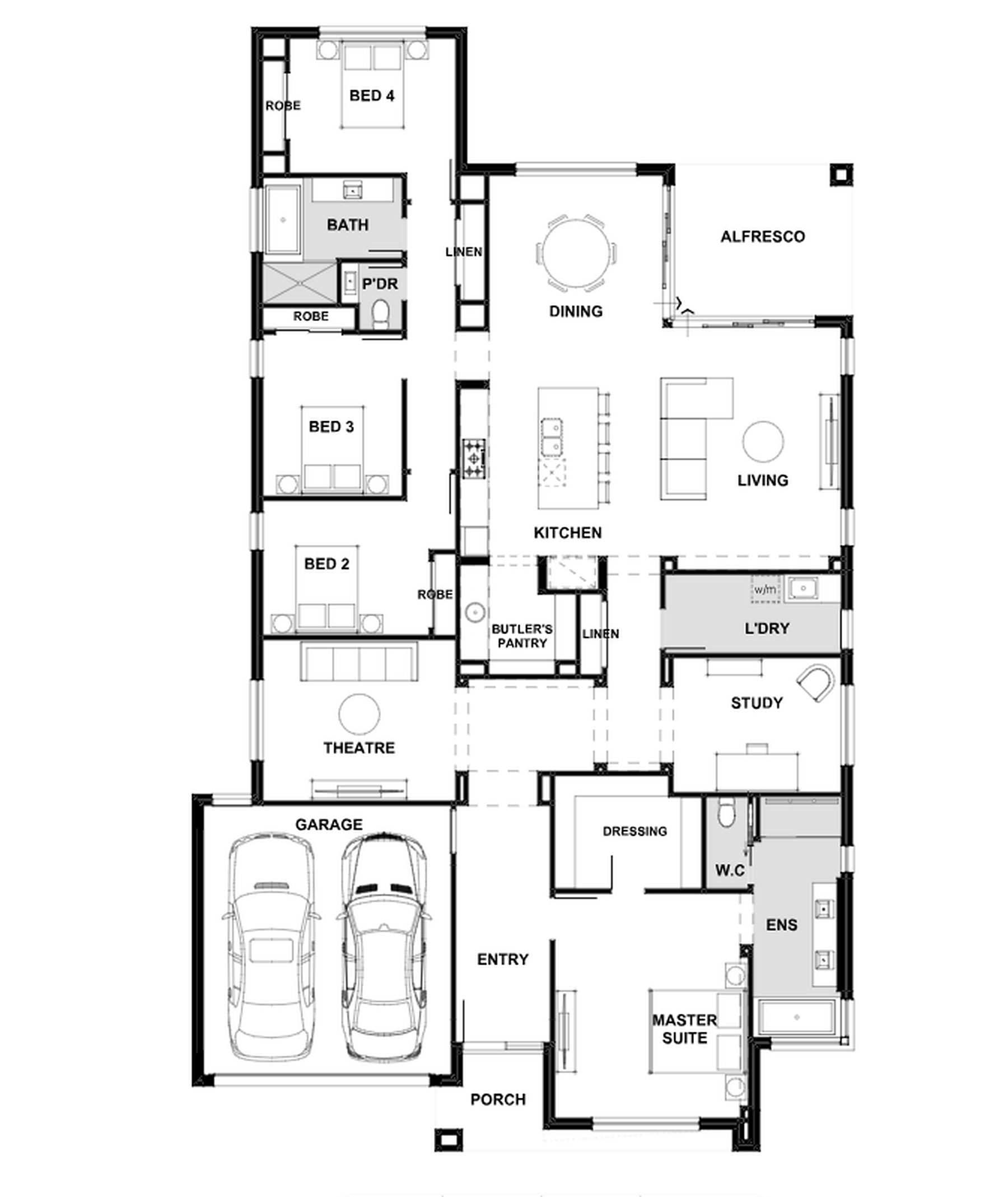

Floorplan · H236-S33
Architectural detail, proportioned for easy comparison.
Haven 236 now follows the supplied 14.65 m × 24.94 m replacement plan: four bedrooms, two bathrooms plus a powder room, a double garage, theatre, study and generous living and dining zones connected to a covered alfresco. Its documented total roofed area is 304.40 m².
Ground floorH236-S33 · coordinated concept · not for construction
People Homes concept floorplan — final construction documentation requires professional verification.
Design highlights
Exact 14.65 m × 24.94 m exterior footprint from the supplied schedule
Documented 304.40 m² total roofed area
Separate measured theatre and study
Kitchen supported by a butler’s pantry
Living and dining connect directly to the 13.30 m² alfresco
Area schedule
House · ground floor247.80 m²Double garage36.20 m²Porch7.10 m²Alfresco13.30 m²Total roofed concept area304.40 m² · 32.77 sq
Interior direction
Grand Family Contemporary
Premium materials, calm contrast and family-friendly durability guide the spaces shown in the interior slider. Final selections and inclusions are confirmed during design.
Let’s confirm the fit before the details are locked in.
Share your suburb, block dimensions and family priorities. We’ll discuss siting, orientation, setbacks and the right next step toward a site-specific measured design.
Start your build ↗
